PLANET普萊德科技(台灣股票代碼6263)，台灣專業網路通訊設備商也專做代工市場，世界500強的企業也OEM普萊德的網路設備，2004年起連年獲得台灣精品獎的殊榮
▣軟體規格▣
✅L3 VLAN hardware static routing, RIPv1/v2, OSPFv2/v3
✅IEEE802.1Q VLAN
✅STP/RSTP/MSTP
✅ERPS(相容ITU-T G.8032)
✅LACP/Cisco Static Trunk
✅IGMP(v1/v2/v3)snooping, IGMP querier mode
✅MLD (v1/v2) snooping, MLD querier mode
✅DHCP snooping, Port isolation
✅網路風暴管理(Broadcast / Unknown-Unicast / Unknown-Multicast)
✅QoS,各Port頻寬速度限制管理, IPv4 QoS(CoS/ToS/DSCP), Port-based WRR
☰☷☰☷☰☷☰☷☰☷☰☷☰☷☰☷☰☷☰☷☰☷☰☷☰☷☰☷☰☷☰☷☰☷☰☷☰☷☰☷☰☷
▣硬體規格▣

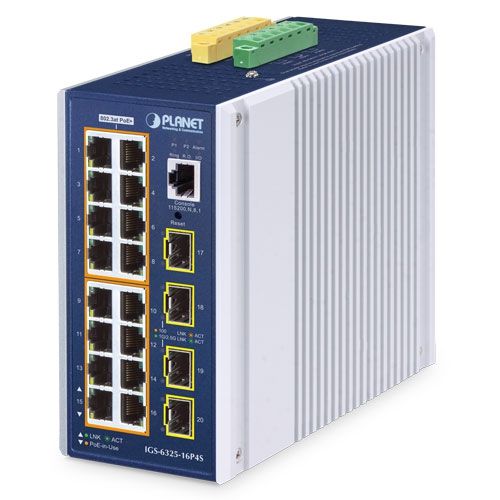

型號: IGS-6325-16P4S
✅SFP+/SFP/mini-GBIC Slots: 4 2500BASE-X/1000BASE-SX/LX/BX SFP
✅PoE RJ45 ports: 16 x 10/100/1000BASE-T
✅PoE規格: IEEE 802.3af/802.3at End-span [1/2(+), 3/6(-)]
✅PoE供電容量: 單電源輸入240 watts (max.), 雙電源輸入360 watts (max.)
✅背板頻寬: 52Gbps
✅Throughput@64Bytes: 38.6Mpps
✅MAC Address Table: 16K entries
✅Shared Data Buffer: 32Mbits
✅Jumbo Frame: 10K bytes
✅安規: FCC Part 15 Class A, CE
✅運作溫度: -40 ~ 75 degrees C, 5 ~ 95% (non-condensing)
✅大小: 76 x 135 x 152 mm
✅重量: 1530g
✅電源輸入: Dual 48~54V DC
✅電源消耗: 17.4 watts(System), 394 watts(Full loading)
